Induction Loop Home System

Product Code:

£109.98 inc VAT

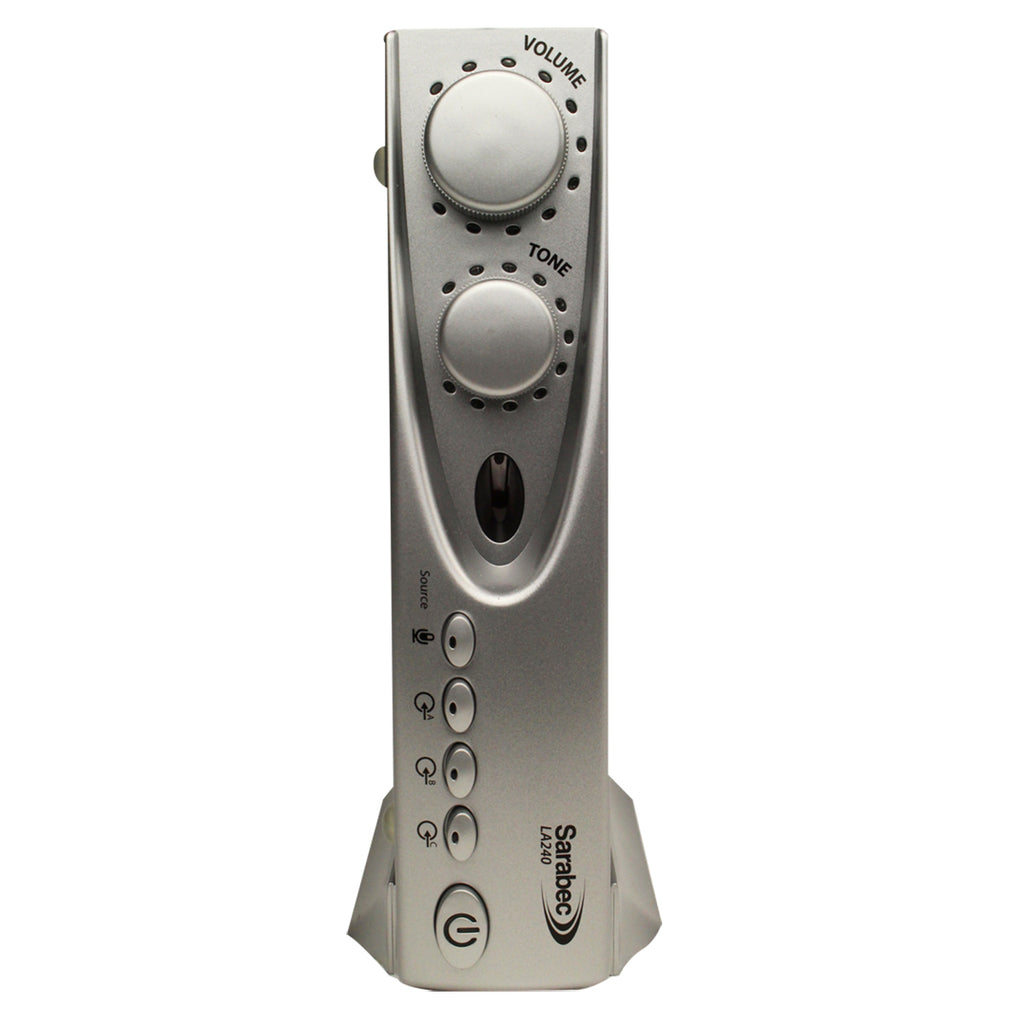

This is a modern home loop system that will help users to enjoy the sound from the TV, radio or conversation by transmitting the signal directly into a hearing aid when it is set to the T position. It benefits from rotary volume and tone control and a loop level indicator.

Includes:

  1. LA240 Amplifier
  2. Remote Control
  3. Power Supply
  4. Amplifier Stand
  5. Operating Instructions.

Power Supply:

  • 18V 1.5A Power Supply
  • 12-24V DC 2A External Supply

Controls:

  • Rotary Volume Control
  • Rotary Tone control
  • On/Off power switch
  • Source selector switches
  • Priority switch

Input connections:

  • Digital Audio TOSlink/Coaxial
  • 2 x Microphone inputs. 3.5mm mono jack plug. DC powered 5V for electret microphones
  • 2x Aux In Left/Right line inputs. Phono/RCA sockets. For direct connection to a TV sound output or other audio source via SCART or other suitable socket.

Output connections:

  • Push grip connectors for loop cable or loop pad (Labelled: Loop Cable). Loop will give full output with loop resistance between 0.5 and 1.5 Ohms.
  • 3.5mm stereo jack for headphones (Phones) 8-60 Ohms

Loop output:

  • 3.0A output current @ 100-5KHz. Meets BS EN60118-4:2006 for a loop not exceeding 6.5m (20ft) in width . Suitable for areas up to 70m2

Loop Cable:

  • Single turn loop cable.  24/0.2mm (0.75mm2) single core PVC insulated cable. Min cable length 11m = 0.5 Ohms Max = 40m

See full instructions here.
